Miniature electromagnetic relays are compact electrical devices that utilize an electromagnet to control the flow of current in a circuit. These relays consist of a coil, armature, and contacts. When an electric current passes through the coil, it generates a magnetic field that attracts the armature, causing it to move and close or open the contacts, thus completing or interrupting the circuit.
The primary function of miniature electromagnetic relays is to provide an electrical isolation between different circuits. They act as a switch, allowing a low-power signal to control a higher-power circuit. This is particularly useful in situations where it is necessary to control a large amount of current or voltage with a miniature control signal.
Miniature electromagnetic relays find applications in various industries and devices. One common use is in control panels and automation systems, where they are used to control motors, lights, and other electrical components. They are also widely used in telecommunications equipment, such as telephone exchanges and modems, to route signals and establish connections.
In addition, miniature electromagnetic relays are commonly employed in automotive systems. They are used in vehicles to control functions like headlights, windshield wipers, and power windows. These relays ensure the efficient and reliable operation of these components, enhancing the overall performance and safety of the vehicle.
Furthermore, miniature electromagnetic relays play a crucial role in the field of electronics. They are used in printed circuit boards (PCBs) to switch signals, control power supply, and protect sensitive components. Their compact size and reliable operation make them ideal for use in various electronic devices, including computers, televisions, and home appliances.
In conclusion, miniature electromagnetic relays are compact electrical devices that utilize an electromagnet to control the flow of current in a circuit. They provide electrical isolation and act as a switch, allowing a low-power signal to control a higher-power circuit. These relays find applications in control panels, automation systems, telecommunications equipment, automotive systems, and electronics. Their versatility and reliability make them an essential component in various industries and devices.
LOW CURRENT LOW VOLTAGE,
could be your first choice.

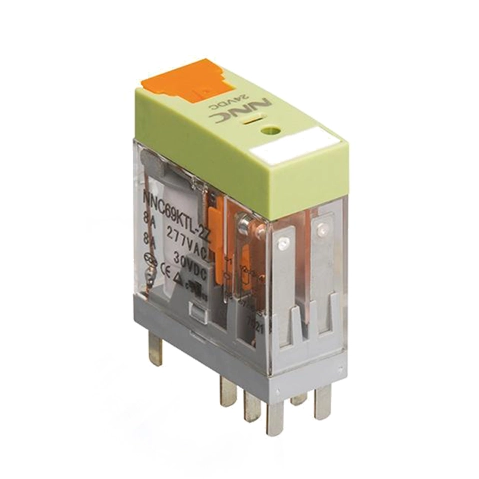

NNC69KTL(JQX-14FT) Miniature PCB Relay |
| |||||||
Model and Description | ||||||||
NNC69KTL(JQX-14FT) - 1C 10A DC24V | ||||||||
★Contact form: H=NO, D=NC, Z=NO&NC | ||||||||
Specification | ||||||||
Dimension | 28.8mm*12.7mm*34mm | |||||||
Contact Feature | Form | 1Z(SPDT);1H(SPST-NO);1D(SPST-NC) | 2Z(DPDT);2H(DPST-NO);2D(DPST-NC) | |||||
Rated load | NO15A | NC12A | 8A | |||||
Max switching voltage | 277VAC/30VDC | |||||||
Contact resistance | ≤100mΩ | |||||||
Material | Ag Alloy(AgSnO2) | |||||||
Electrical life | ≥1*105 | |||||||
Mechanical life | ≥1*107 | |||||||
Operate voltage (23℃) | DC:≤75%*Rated voltage, AC:≤80%*Rated voltage | |||||||
Release voltage (23℃) | DC:≥10%*Rated voltage, AC:≥30%*Rated voltage | |||||||
Maximum voltage (23℃) | 110%*Rated voltage | |||||||
Coil voltage | DC3-110V, AC6-240V (Customize allowed) | |||||||
Coil power | DC: 0.53W, AC: 1.2VA | |||||||
Pick-up time | ≤20ms | |||||||
Release time | ≤10ms | |||||||
Dielectric strength | Between open contacts of same pole | 1200VAC/1min(leakage current 1mA) | ||||||
Between contacts of different pole | 1200VAC/1min(leakage current 1mA) | |||||||
Between contacts and coil | 5000VAC/1min(leakage current 1mA) | |||||||
Insulation resistance | ≥100mΩ(500VDC) | |||||||
Ambient temperature | -55℃ ~70℃ | |||||||
Ambient humidity | 35%-80%RH | |||||||
Atmospheric pressure | 86-106KPa | |||||||
Shock resistance | 10G (sinusoidal half-wave pulse: 11ms) | |||||||
Vibration resistance | 10-55Hz (double amplitude: 1.5mm) | |||||||
Installation | PCB or Socket with DIN Rail | |||||||
Weight | Approx. 19g/PCS | |||||||
Packing | Carton with foam box inside | 200PCS/Carton, G.W.: 5KG, N.W.: 4KG, Dimension(mm): 350×245×220 | ||||||
Wiring Diagram & Bottom View | ||||||||
| ||||||||
Performance Graph | ||||||||
