Engineering teams constantly face a critical crossroad in power electronics design. Standard off-the-shelf components offer rapid deployment. They also provide highly predictable upfront expenses. However, custom designs specifically address rigid size, weight, power, and cost (SWaP-C) bottlenecks. Standard catalog parts often fail to meet these extreme systemic demands.
Designing high-performance systems means you cannot always force a standard part into an unconventional space. If thermal limits breach or parasitic inductance ruins switching efficiency, standard options become a severe liability. This reality forces you to evaluate whether paying upfront engineering fees makes strategic sense. We will explore a clear technical and commercial framework to guide this crucial decision.
You will learn how to identify strict performance limits. We will map your exact specification requirements and navigate the hidden risks of bespoke manufacturing. Ultimately, this framework ensures you only commit to expensive customization when it is financially and functionally justified.
Custom modules are viable only when specific thermal, spatial, or parasitic inductance requirements cannot be met by any standard catalog offerings.
Upfront Non-Recurring Engineering (NRE) costs must be offset by long-term system-level savings (e.g., reduced cooling hardware, simplified assembly).
Thoroughly mapping your target power semiconductor module specifications is a mandatory prerequisite before engaging manufacturing partners.
Selecting the right power semiconductor module supplier requires auditing their in-house packaging, testing, and "short-flow" prototyping capabilities.
Engineers usually prefer standard parts for obvious reasons. They ship quickly and carry no engineering fees. Yet, pushing the boundaries of power density often breaks the standard mold. You must recognize exactly when catalog parts hold your system back.
Most commercial modules use standard rectangular footprints like 62mm or EconoDUAL packages. These shapes work perfectly for industrial cabinets. However, they fail in highly confined mechatronic spaces. Electric vehicle (EV) traction inverters often sit directly inside the transaxle housing. Aerospace actuators require cylindrical shapes to fit inside motor casings. When a rectangular module blocks your mechanical integration, custom footprint design becomes unavoidable. You redesign the baseplate to match the enclosure, not the other way around.
Heat extraction dictates power density. Standard modules typically use Aluminum Oxide (Al2O3) substrates. These perform adequately for general applications. Extreme environments demand much more. High-power density designs require advanced substrate materials like Aluminum Nitride (AlN) or Silicon Nitride (Si3N4). These materials offer vastly superior thermal conductivity and mechanical strength. Furthermore, custom modules can feature specialized baseplates. A pin-fin structure allows direct liquid cooling. You eliminate layers of thermal grease. This direct cooling approach significantly lowers thermal resistance.
Modern wide-bandgap materials like Silicon Carbide (SiC) and Gallium Nitride (GaN) switch at incredibly high speeds. Fast switching creates severe voltage overshoots if internal parasitic inductance is high. Standard internal layouts often suffer from long commutation loops. These loops generate excessive voltage spikes during turn-off events. Custom internal layouts optimize the die placement. Engineers route the internal busbars symmetrically. This strict layout control minimizes parasitic inductance, preventing device destruction and reducing electromagnetic interference (EMI).
Custom modules cost more per unit. However, they reduce peripheral component counts. You can integrate DC-link capacitors or custom busbars directly into the module housing. This integration removes external connectors, cables, and bulky external heatsinks. The module price increases, but the overall bill of materials shrinks. You save money on assembly labor and inventory management. This system-level savings often justifies the higher initial component cost.
Before contacting a manufacturer, you must document your exact technical needs. Vague requirements lead to expensive design iterations. You need a rigorous definition of your internal architecture.
Standard modules lock you into a specific vendor's silicon. Custom designs allow you to mix and match the best chips available. You might pair a robust IGBT from one manufacturer with a highly efficient SiC Schottky diode from another. This hybrid approach balances cost and switching performance. Specialized applications often require unique circuit topologies. Standard half-bridge or six-pack layouts may not suffice. If you build a multi-level inverter (like NPC or ANPC) or a complex matrix converter, custom die placement is mandatory. You dictate the exact chip combinations.
Advanced modules do more than just switch currents. They manage their own environment. You must evaluate the benefits of integrating peripheral components directly inside the housing. Integrating gate drive circuits reduces parasitic gate loop inductance. This prevents false triggering in noisy environments. You can also embed current sensors and NTC temperature thermistors directly adjacent to the hottest silicon dies. This proximity provides highly accurate, real-time thermal protection. Carefully mapping these power semiconductor module specifications ensures the final product meets your control system's safety requirements.
Your lifecycle reliability targets dictate your packaging choices. Traditional aluminum wire bonding is cost-effective but struggles under severe thermal cycling. Wire bonds experience shear stress and eventually lift off the die. For higher reliability, consider ribbon bonding. Ribbons carry more current and offer greater contact area. For extreme automotive or aerospace profiles, explore direct lead bonding or double-sided cooling. These advanced interconnects eliminate wire bonds entirely. They sandwich the die between two copper layers, maximizing heat extraction and extending operational lifespan significantly.
Bespoke engineering solves complex technical problems. It also introduces substantial commercial and operational risks. You must evaluate these hidden factors before signing a development contract.
Customization requires upfront cash. Non-Recurring Engineering (NRE) fees cover initial design, thermal simulations, and tooling creation. Plastic injection molds for custom housings are particularly expensive. These fees can easily range from tens to hundreds of thousands of dollars. Manufacturers will also enforce strict Minimum Order Quantities (MOQs). You must perform a rigorous break-even analysis. Compare the NRE and unit cost premium against your projected volume and system-level savings. If you only build five hundred units a year, customization rarely makes financial sense.
Standard modules ship from distributors the next day. Custom modules require patience. A typical development timeline spans 6 to 18 months from concept to qualified production.
Phase 1: Initial 3D modeling and thermal simulation (1-2 months).
Phase 2: Tooling fabrication and first-article prototyping (3-5 months).
Phase 3: Design iteration and electrical tuning (2-3 months).
Phase 4: Final qualification testing and volume ramp-up (4-8 months).
You must align this lengthy timeline with your end-product launch schedule. Delays in the module design will stall your entire system rollout.
A new module design requires rigorous validation. You cannot simply trust a simulation. The module must undergo extensive reliability testing. For automotive applications, the AQG324 standard is mandatory. It requires thousands of hours of active power cycling, passive thermal shock, and severe vibration testing. Industrial applications follow similar, albeit slightly less stringent, IEC standards. These tests cost money and consume months of time. If a prototype fails during cycle testing, you must redesign the weak point and restart the entire qualification process.
Custom designs inherently create single-sourcing risks. When you rely on a single factory for a bespoke part, you face massive supply chain vulnerability. If that factory suffers a fire or a materials shortage, your production line stops. You must address this risk during contract negotiations. Clearly define who owns the intellectual property (IP). Does the supplier own the internal layout, or do you? Always attempt to negotiate secondary manufacturing rights. This allows you to transfer the design to a second source if the original partner fails to deliver.
Before launching a custom engineering program, you must rigorously attempt to prove yourself wrong. Explore every alternative path first. Often, a slight compromise in system design yields massive savings.
Sometimes, modifying your external hardware is cheaper than designing a custom chip package. Consider redesigning your mechanical enclosure. Expanding a chassis by two centimeters might allow you to fit a standard power semiconductor module series. You spend a few thousand dollars updating sheet metal drawings instead of hundreds of thousands on NRE fees. Standard series offer proven reliability data and immediate availability. Always challenge your mechanical team to accommodate standard catalog footprints before escalating to custom solutions.
For mid-power applications, modern discrete packages offer a compelling alternative. You can parallel multiple TO-247-4 or TO-263-7 packages on a high-performance printed circuit board (PCB). Surface-mount discretes allow for highly automated, low-cost assembly. Paralleling discretes does increase PCB complexity and requires careful current balancing. However, it entirely bypasses module NRE fees. This approach provides an excellent cost-to-performance ratio for chargers and auxiliary inverters operating between 20kW and 75kW.
Table 1: Power Component Strategy Comparison
Strategy | Upfront Cost (NRE) | Time to Market | Space Optimization | Best Use Case |
|---|---|---|---|---|
Paralleled Discretes | Low | Fast | Poor to Moderate | Cost-sensitive, mid-power (20-75kW) |
Standard Modules | None | Immediate | Moderate | Industrial drives, grid infrastructure |
Custom Modules | Very High | 6-18 Months | Excellent | Aerospace, EV traction, high-density needs |

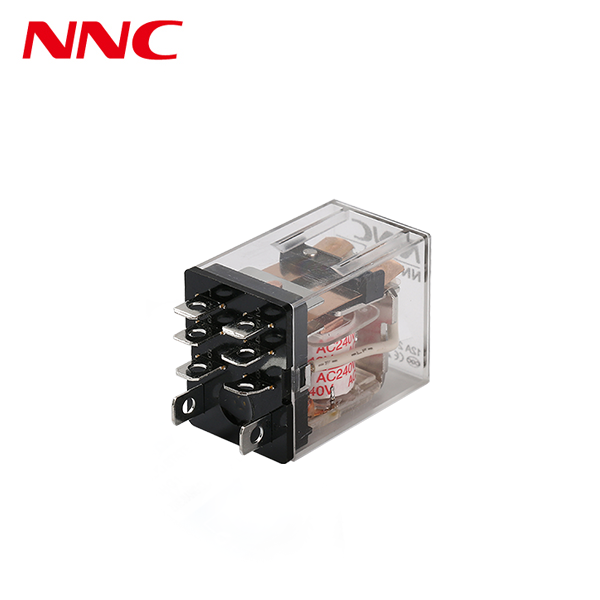

Engineers sometimes overcomplicate simple problems. You must clarify your exact application boundaries. If your system requires low-frequency switching or basic galvanic isolation, solid-state technology might be overkill. For battery disconnects or simple pre-charge circuits, a traditional electromechanical solution often works best. A single coil general purpose power relay handles massive fault currents easily. It provides physical air-gap isolation. You do not always need a complex, high-cost solid-state power semiconductor module for rudimentary switching tasks.
Choosing a manufacturing partner is your most critical project decision. You are not buying a component; you are entering a multi-year engineering marriage. You must audit their capabilities aggressively.
Speed during the design phase saves projects. Ask potential partners about their prototyping agility. Do they operate dedicated short-flow manufacturing lines? A short-flow process allows them to build functional prototypes quickly without interrupting their main high-volume production lines. If a supplier forces your prototypes to wait in line behind massive commercial orders, your development timeline will stretch uncontrollably. Agile suppliers deliver first-article samples in weeks, not months.
You must distinguish between true engineering partners and build-to-print contract manufacturers. A capable power semiconductor module supplier possesses robust in-house engineering resources. They should offer upfront finite element analysis (FEA). They need to simulate thermal gradients and mechanical stress before cutting any physical tooling. Contract manufacturers simply assemble what you draw. They will not catch thermal flaws until the prototype fails. You need a partner who actively improves your design through advanced multi-physics simulation.
Reliability depends entirely on manufacturing discipline. Demand transparency regarding their quality assurance (QA) protocols. A premium supplier will utilize Automated Optical Inspection (AOI) to verify every single wire bond placement. They must use X-ray void detection to ensure solder layers beneath the dies are free of air pockets. Voids cause localized hot spots that destroy silicon. Finally, they should perform dynamic electrical testing on 100% of outbound units, measuring true switching losses, not just static parameters.
Before initiating your first supplier consultation, gather your engineering data. A well-prepared data package accelerates the quoting process. Ensure you have the following ready:
Continuous and Peak Load Profiles: Define exact RMS currents and overload durations.
Cooling Methods and Boundaries: Specify coolant type, flow rate, and maximum inlet temperature.
Target Dimensions: Provide 3D STEP files of the available mechanical envelope.
Switching Frequency Targets: Detail the required speed and gate drive voltage constraints.
Presenting this data upfront proves you are a serious buyer ready for a technical deep dive.
Requesting a custom design is a major strategic commitment. It is an investment in comprehensive system-level optimization, not merely a routine component procurement. You trade immediate convenience for long-term performance superiority. Always ensure the upfront engineering fees yield tangible savings in peripheral hardware, assembly labor, or market-winning form factors.
Reiterate the necessity of passing strict break-even volume tests. Standardize where you can, and customize only where you must. When you do customize, build a comprehensive data package first. Audit your chosen supplier for simulation capabilities, agile prototyping, and rigorous quality control. By following this disciplined framework, you will successfully navigate the complexities of bespoke power electronics design.
A: A standard timeline spans 6 to 18 months. This includes initial concept discussions, thermal simulations, tooling fabrication, and physical prototyping. The most time-consuming phase is often the rigorous qualification testing required to validate the final design for production.
A: Baseline industry expectations typically require thousands to tens of thousands of units annually. The exact break-even point depends heavily on the application value and the system-level savings the module provides by eliminating peripheral components.
A: Ownership varies based on contract negotiations. Standard industry practice usually grants the supplier ownership of the internal layout and manufacturing process, while the buyer owns the custom tooling they funded. You must secure clear upfront contracts detailing IP and secondary sourcing rights.
A: Yes. Many suppliers offer a "semi-custom" approach. They place standard, pre-qualified substrates inside modified baseplates or custom plastic housings. This strategy significantly saves on NRE costs and accelerates development time while solving mechanical fit issues.
