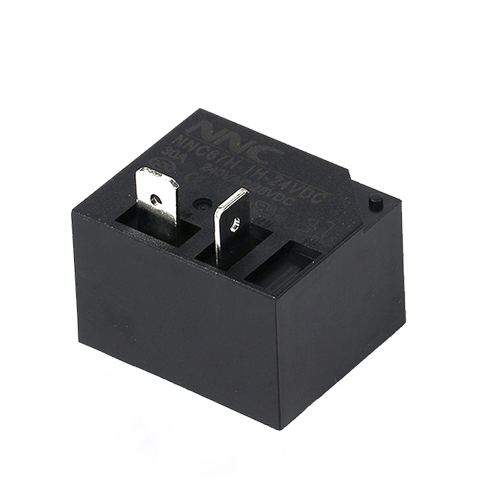

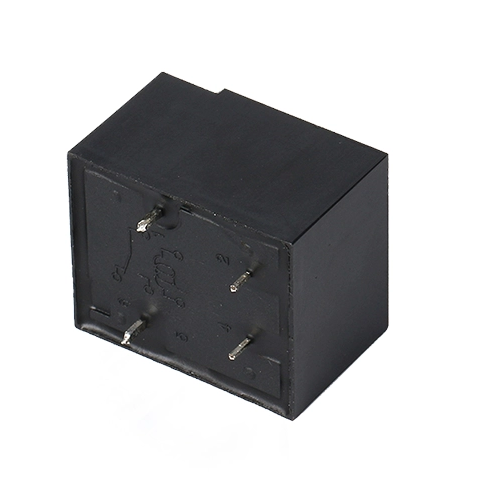

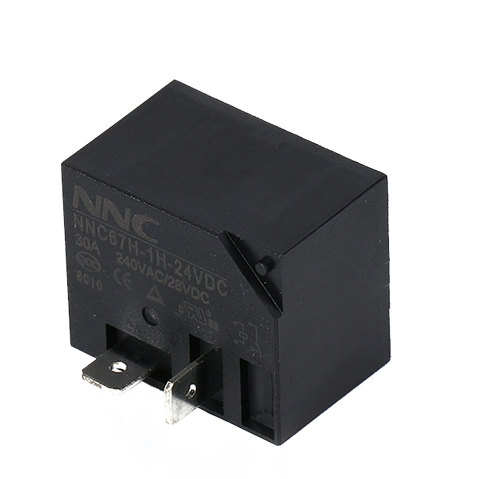

Sugar Cube Quick- connect PCB Terminals T93

Product Description:

The NNC67H Series is a line of miniature high power relays that combine compact design with the capability to handle substantial electrical loads. These relays are engineered for applications requiring robust switching capacities and are well-suited for integration into a variety of electronic and industrial systems.

Product Features:

• Miniature Size: The NNC67H Series features a compact design that conserves space while providing high power switching.

• PCB and Quick-Connect Terminals: Equipped with both PCB and quick-connect terminals, facilitating easy and secure installation.

• High Switching Capability: Capable of handling up to 40A, these relays are designed for applications with high current demands.

• AC/DC Coil Compatibility: Suitable for both AC and DC coil voltages, offering flexibility for different power requirements.

• Regulatory Compliance: Adheres to RoHS standards for environmental safety and is certified by TUV, UL, CE, and CQC for quality and reliability.

Product Advantages:

• Customizable Contact Forms: Available in various contact forms such as Z-C (CO), H-A (NO), and D-B (NC) to meet specific switching needs.

• Wide Voltage Range: Compatible with a broad range of coil voltages from DC 3V to 110V and AC 6V to 240V, ensuring adaptability across diverse systems.

• Special Code Customization: Offers the option for customer-specific requirements, allowing for tailored solutions.

• Premium Contact Material: Utilizes Ag Alloy (AgSnO2; AgCdO) for superior electrical conductivity and durability.

• High Mechanical and Electrical Endurance: Built to last with a minimum of 1x10^7 mechanical operations and 1x10^5 electrical operations.

• Efficient Coil Power Consumption: With a low coil power consumption of 0.93W to 1.5VA, these relays are energy efficient.

• Robust Dielectric Strength: Provides high insulation resistance and dielectric strength for reliable operation in demanding conditions.

• Environmental Resilience: Designed to operate effectively in a wide range of ambient temperatures and humidity levels.

Conclusion:

The NNC67H Series miniature high power relays are designed for excellence in high current switching applications. With their combination of compact size, high power handling, and robust construction, these relays offer a reliable and efficient solution for a broad spectrum of electronic and industrial needs.
