Miniature Lockable Test Button with LED Indicator MY4N

5 0 Reviews
Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

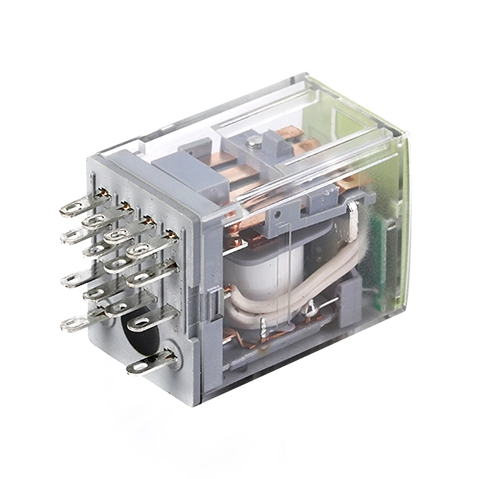

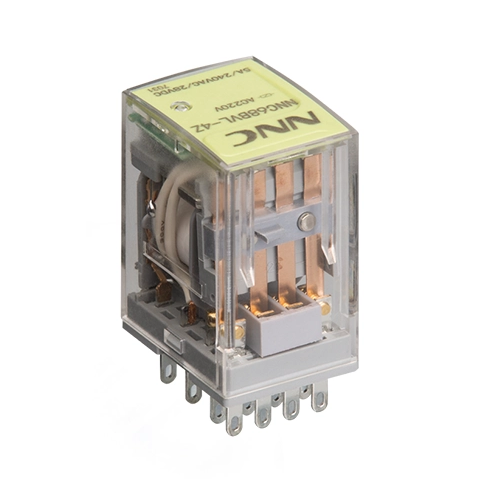

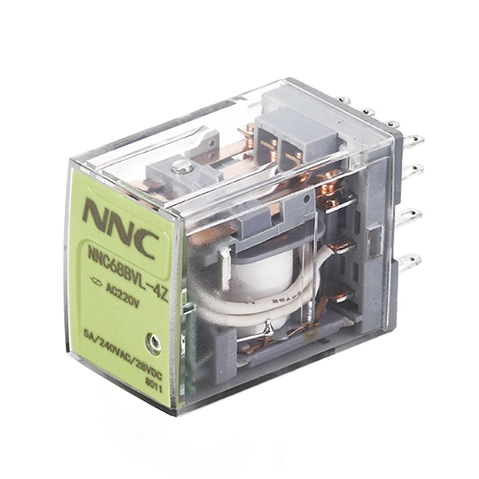

The Miniature intermediate power relay of MY4N has lockable test button with SMD LED indicator. Its switching capablity up to 10A. There are two ways of installation, which is PCB terminals and solder terminals.
  • NNC68B

  • CLION

Availability:
Quantity:

Introduction

Introducing our miniature high power relay, a reliable and efficient solution for controlling electrical circuits. Designed with precision and built to last, this electromagnetic relay utilizes an electromagnetic coil to control the on/off function of a working circuit.

Advantages

One of the key advantages of our miniature high power relay is its ability to enable low voltage and weak current control circuits to regulate high voltage and strong current working circuits. This feature not only ensures the smooth operation of your electrical systems but also allows for remote control and production automation.

The Field of Appliance

With its wide range of applications, our electromagnetic relay is widely used in various industries, including automatic control systems found in refrigerators, automobiles, elevators, and machine tools. It also plays a crucial role in the field of communication.

In addition to its control capabilities, our miniature high power relay serves as an automatic regulator, providing safety protection and circuit conversion within your electrical circuits. This ensures optimal performance and safeguards against any potential risks.

Conclusion

Choose our miniature high power relay for its exceptional quality, durability, and versatility. Experience the convenience and efficiency it brings to your electrical control systems. Trust in our professional-grade product to meet your needs and exceed your expectations.


NNC68BVL(MY2N, MY4N) General Purpose Relay

Model and Description

MY2N, MY4N

Lockable Test Button MY 2N2C

Lockable Test Button MY 4N4C

Specification

Dimension

27.3mm*21mm*36.2mm

Contact Feature

Form

2Z(DPDT);2H(DPST-NO);2D(DPST-NC)


4Z(4PDT);4H(4PST-NO);4D(4PST-NC)


Rated load

6.5A/10A

5A

Max switching voltage

240VAC/28VDC

Contact resistance

≤100mΩ

Material

Ag Alloy(AgSnO2)

Electrical life

≥1*105

Mechanical life

≥1*107

Operate voltage (23℃)

DC:≤75%*Rated voltage, AC:≤80%*Rated voltage

Release voltage (23℃)

DC:≥10%*Rated voltage, AC:≥30%*Rated voltage

Maximum voltage (23℃)

110%*Rated voltage

Coil voltage

DC6-220V, AC6-380V (Customize allowed)

Coil power

DC: 0.9W, AC: 1.2VA

Pick-up time

≤15ms

Release time

≤10ms

Dielectric strength


Between open contacts of same pole

1000VAC for 1min

Between contacts of different pole

1000VAC for 1min

Between contacts and coil

1500VAC for 1min/4500VAC for 1min

Insulation resistance

≥100mΩ(500VDC)

Ambient temperature

--40°C ~ 85°C

Ambient humidity

45%-85%RH

Atmospheric pressure

86-106KPa

Shock resistance

10G (sinusoidal half-wave pulse: 11ms)

Vibration resistance

10-55Hz (double amplitude: 1.5mm)

Installation

PCB or Socket with DIN Rail or Screw

Weight

Approx. 33g/PCS

Approx. 35g/PCS

Packing

Carton with paper box inside

600PCS/Carton, G.W.: 21KG, N.W.: 20KG, Dimension(mm): 330×310×345


Wiring Diagram & Bottom View
