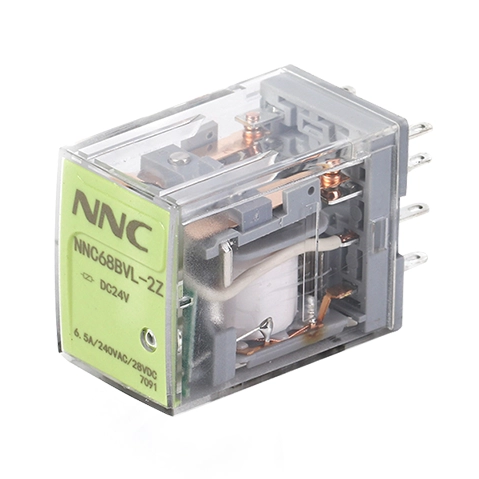

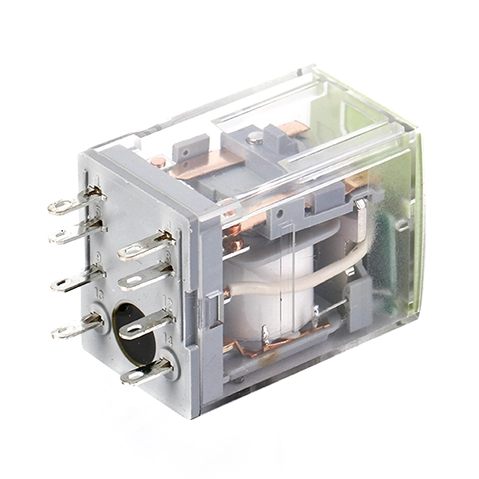

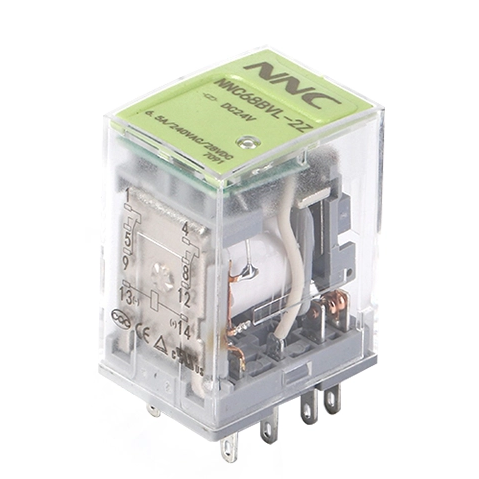

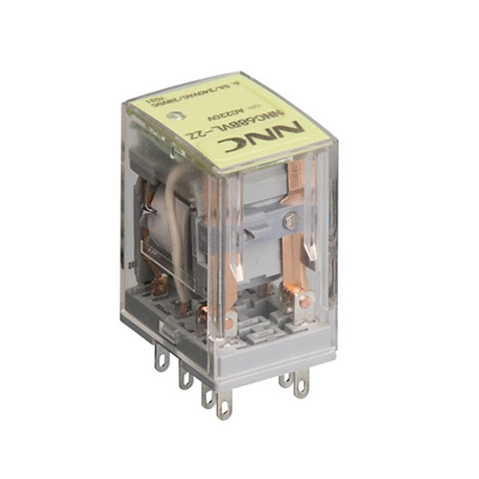

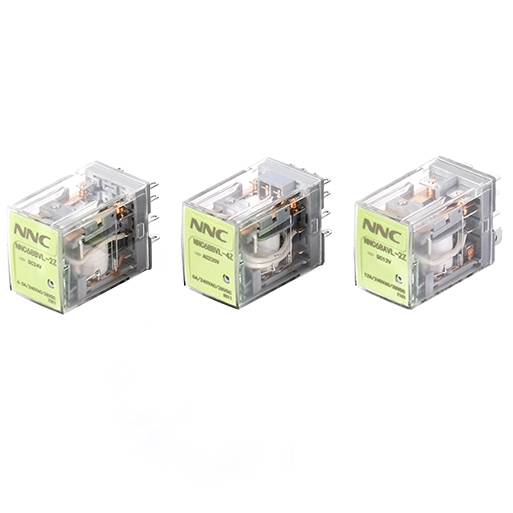

The NNC68B-2Z (also known as HH52P and MY2) is a universal electromagnetic relay launched by Clion Electric. It adopts dust-free workshop automated production technology and is specially designed for high-reliability scenarios. It is widely used in industrial control, household appliances, automation equipment and other fields. Its core advantages include high load capacity, long service life and excellent insulation performance, meeting the requirements of international standard certification 236.
Contact material: Special silver alloy contacts are adopted, combined with dedicated reed copper material, significantly enhancing electrical conductivity and wear resistance. It supports a rated current of 6.5A and a load capacity of 240VAC/28VDC, suitable for resistive load scenarios 26.
Contact structure: 2Z stands for "Double-pole Double-throw" (DPDT), providing flexible circuit switching functions to meet complex control requirements.
Dust-free production: The entire process is completed in a dust-free workshop to ensure internal dust prevention and component cleanliness, reducing the risk of failure caused by impurities.
Automated assembly: Adopting international standard dimensions and installation methods, it has strong compatibility and is easy to be quickly integrated into PCB circuit boards or control systems.
Electrical life: Up to 10^5 operations (15 times per minute) under resistive load, and mechanical life up to 10^7 times (300 times per minute without load). 16.
Response speed: Pull-in time ≤15ms, release time ≤10ms, ensuring rapid response to control requirements.
Environmental resistance: The operating temperature range covers -55℃ to +70℃, and it has passed high temperature, low temperature, vibration and shock tests, adapting to harsh industrial environments.
Insulation performance: The medium between the contacts can withstand a voltage of up to 1000VAC, and the coil and contacts can withstand a voltage of 1500VAC. The leakage current is ≤1mA, ensuring safe use.
International certification: Passed CQC, CE, UL, TUV and other certifications, complies with ROHS environmental protection standards, and meets global market access requirements.
Industrial automation: It is used in PLC control systems, motor drives, instruments and meters, etc., to achieve signal switching and load control.
Household appliances: Integrated into devices such as air conditioners and washing machines, they are responsible for circuit on-off and protection functions.
Electronic devices: Applicable to PCB circuit boards, power modules and communication equipment, providing stable electrical isolation.
Clion Electric was established in 2003. It holds ISO 9001/14001, OHSAS 18001 system certifications and Dutch RVA qualifications. Its products are exported to over 30 countries in Europe, America, the Middle East, etc. It is renowned for its "high reliability" and "long service life", and has been awarded honors such as "Provincial Key Backbone Enterprise" and "Trustworthy Enterprise for Product Quality".
