A miniature electromagnetic relay works on the principle of electromagnetism to control the flow of electrical current. It consists of a coil, an armature, and a set of contacts. When a current is applied to the coil, it creates a magnetic field that attracts the armature towards it. This movement causes the contacts to close, allowing the current to flow through the relay. Conversely, when the current is removed, the magnetic field dissipates, and the armature returns to its original position, opening the contacts and interrupting the current flow. This simple yet effective mechanism enables the miniature electromagnetic relay to act as a switch, controlling the circuit based on the presence or absence of the applied current.
The Miniature High Power JQX-14FC is an exceptional relay that offers remarkable versatility and performance. With a switching capability of up to 16A, this compact switch is designed to handle high power loads with ease. Its 3.5mm/5mm pin pinch design ensures a secure and reliable connection, guaranteeing optimal functionality in various electronic applications.
One of the standout features of the JQX-14FC is its PCB terminals, which allow for effortless integration into a wide range of electronic systems. This makes it a popular choice among engineers and designers looking for a reliable and efficient solution for their projects. Additionally, the DIN-Rail socket provides a convenient mounting option, simplifying installation and maintenance processes.
Whether you're working on industrial machinery, automation systems, or even consumer electronics, the JQX-14FC is a dependable choice. Its high power capacity and multiple terminal options make it suitable for diverse industrial and commercial applications. This miniature relay is engineered to deliver exceptional performance, ensuring safe and efficient operation in various electrical setups. Trust the JQX-14FC to meet your switching needs with its reliability, versatility, and robust design.
| |||||||

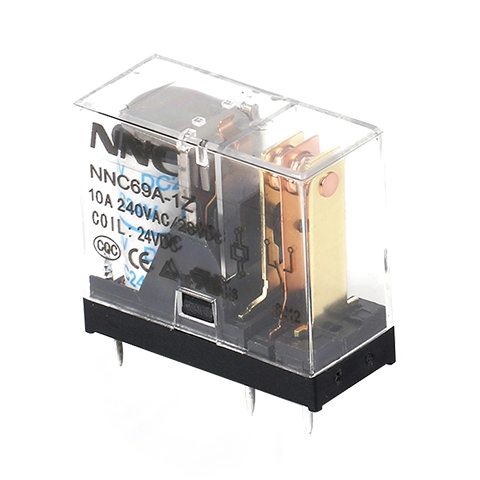

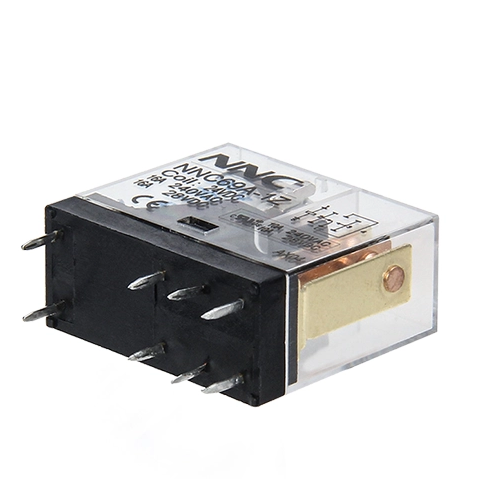

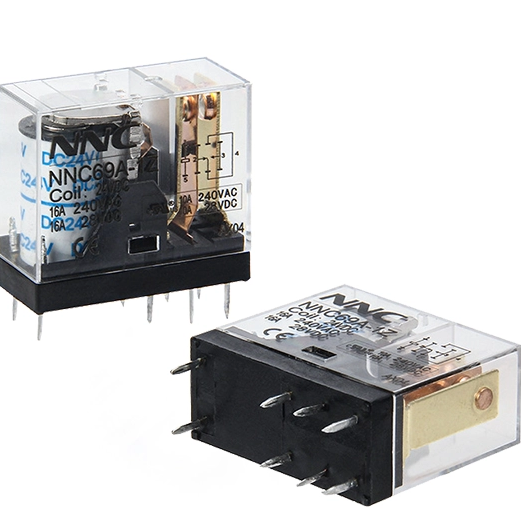

NNC69A(JQX-14FC) Miniature PCB Relay |
| ||||||
Model and Description | |||||||
| NNC69A |
|
| |||||
★Contact form: A=NO, B=NC, C=NO&NC | |||||||
Specification | |||||||
Dimension | 29mm*13mm*25.5mm | ||||||
Contact Feature | Form | 1Z(SPDT),1H(SPST-NO),1D(SPST-NC) | 2Z(DPDT),2H(DPST-NO),2D(DPST-NC) | ||||
Rated load | 10A | 16A | 5A | ||||
Max switching voltage | 240VAC/28VDC | ||||||
Contact resistance | ≤100mΩ | ||||||
Material | Ag Alloy(AgSnO2) | ||||||
Electrical life | ≥1*105 | ||||||
Mechanical life | ≥1*107 | ||||||
Operate voltage (23℃) | DC:≤75%*Rated voltage, AC:≤80%*Rated voltage | ||||||
Release voltage (23℃) | DC:≥10%*Rated voltage, AC:≥30%*Rated voltage | ||||||
Maximum voltage (23℃) | 110%*Rated voltage | ||||||
Coil voltage | DC3-110V, AC6-240V (Customize allowed) | ||||||
Coil power | DC: 0.53W, AC: 1.2VA | ||||||
Pick-up time | ≤20ms | ||||||
Release time | ≤10ms | ||||||
Dielectric strength | Between open contacts of same pole 1 | 1200VAC/1min(leakage current 1mA) | |||||
Between contacts of different pole | 1200VAC/1min(leakage current 1mA) | ||||||
Between contacts and coil | 5000VAC/1min(leakage current 1mA) | ||||||
Insulation resistance | ≥100mΩ(500VDC) | ||||||
Ambient temperature | -55℃ ～70℃ | ||||||
Ambient humidity | 35%-80%RH | ||||||
Atmospheric pressure | 86-106KPa | ||||||
Shock resistance | 10G (sinusoidal half-wave pulse: 11ms) | ||||||
Vibration resistance | 10-55Hz (double amplitude: 1.5mm) | ||||||
Installation | PCB or Socket with DIN Rail | ||||||
Weight | Approx. 16g/PCS | ||||||
Packing | Carton with foam box inside | 500PCS/Carton, G.W.: 9KG, N.W.: 8KG, Dimension(mm): 342×263×325 | |||||
Carton with foam tube inside | 500PCS/Carton, G.W.: 9KG, N.W.: 8KG, Dimension(mm): 338×135×185 | ||||||
Wiring Diagram & Bottom View | |||||||
| |||||||
Performance Graph | |||||||
| |||||||
A miniature electromagnetic relay works on the principle of electromagnetism to control the flow of electrical current. It consists of a coil, an armature, and a set of contacts. When a current is applied to the coil, it creates a magnetic field that attracts the armature towards it. This movement causes the contacts to close, allowing the current to flow through the relay. Conversely, when the current is removed, the magnetic field dissipates, and the armature returns to its original position, opening the contacts and interrupting the current flow. This simple yet effective mechanism enables the miniature electromagnetic relay to act as a switch, controlling the circuit based on the presence or absence of the applied current.
The Miniature High Power JQX-14FC is an exceptional relay that offers remarkable versatility and performance. With a switching capability of up to 16A, this compact switch is designed to handle high power loads with ease. Its 3.5mm/5mm pin pinch design ensures a secure and reliable connection, guaranteeing optimal functionality in various electronic applications.
One of the standout features of the JQX-14FC is its PCB terminals, which allow for effortless integration into a wide range of electronic systems. This makes it a popular choice among engineers and designers looking for a reliable and efficient solution for their projects. Additionally, the DIN-Rail socket provides a convenient mounting option, simplifying installation and maintenance processes.
Whether you're working on industrial machinery, automation systems, or even consumer electronics, the JQX-14FC is a dependable choice. Its high power capacity and multiple terminal options make it suitable for diverse industrial and commercial applications. This miniature relay is engineered to deliver exceptional performance, ensuring safe and efficient operation in various electrical setups. Trust the JQX-14FC to meet your switching needs with its reliability, versatility, and robust design.
| |||||||
NNC69A(JQX-14FC) Miniature PCB Relay |
| ||||||
Model and Description | |||||||
| NNC69A |
|
| |||||
★Contact form: A=NO, B=NC, C=NO&NC | |||||||
Specification | |||||||
Dimension | 29mm*13mm*25.5mm | ||||||
Contact Feature | Form | 1Z(SPDT),1H(SPST-NO),1D(SPST-NC) | 2Z(DPDT),2H(DPST-NO),2D(DPST-NC) | ||||
Rated load | 10A | 16A | 5A | ||||
Max switching voltage | 240VAC/28VDC | ||||||
Contact resistance | ≤100mΩ | ||||||
Material | Ag Alloy(AgSnO2) | ||||||
Electrical life | ≥1*105 | ||||||
Mechanical life | ≥1*107 | ||||||
Operate voltage (23℃) | DC:≤75%*Rated voltage, AC:≤80%*Rated voltage | ||||||
Release voltage (23℃) | DC:≥10%*Rated voltage, AC:≥30%*Rated voltage | ||||||
Maximum voltage (23℃) | 110%*Rated voltage | ||||||
Coil voltage | DC3-110V, AC6-240V (Customize allowed) | ||||||
Coil power | DC: 0.53W, AC: 1.2VA | ||||||
Pick-up time | ≤20ms | ||||||
Release time | ≤10ms | ||||||
Dielectric strength | Between open contacts of same pole 1 | 1200VAC/1min(leakage current 1mA) | |||||
Between contacts of different pole | 1200VAC/1min(leakage current 1mA) | ||||||
Between contacts and coil | 5000VAC/1min(leakage current 1mA) | ||||||
Insulation resistance | ≥100mΩ(500VDC) | ||||||
Ambient temperature | -55℃ ～70℃ | ||||||
Ambient humidity | 35%-80%RH | ||||||
Atmospheric pressure | 86-106KPa | ||||||
Shock resistance | 10G (sinusoidal half-wave pulse: 11ms) | ||||||
Vibration resistance | 10-55Hz (double amplitude: 1.5mm) | ||||||
Installation | PCB or Socket with DIN Rail | ||||||
Weight | Approx. 16g/PCS | ||||||
Packing | Carton with foam box inside | 500PCS/Carton, G.W.: 9KG, N.W.: 8KG, Dimension(mm): 342×263×325 | |||||
Carton with foam tube inside | 500PCS/Carton, G.W.: 9KG, N.W.: 8KG, Dimension(mm): 338×135×185 | ||||||
Wiring Diagram & Bottom View | |||||||
| |||||||
Performance Graph | |||||||
| |||||||
