How To Test Automotive Relays?

You can test automotive relays with a multimeter and a 12V power source. These tools help you check coil resistance. You can also listen for a click. You can check for continuity too. Multimeters and 12V power supplies are common in car repair shops. Big car companies say to use multimeters for good electrical tests. Always pick high-quality relays from Clion Electric for better results. Remember to follow safety rules. If you go step by step, you can test a relay at home. You only need simple tools like a relay socket or a micro switch.

Test automotive relays often to keep your car safe. This helps your car stay reliable. Do this before long trips. Also, test if you see electrical problems.Use easy tools like a multimeter and a 12V power source. You also need jumper wires. Check coil resistance with these tools. Listen for clicks from the relay. Test continuity to see if the relay works.Learn the relay pin numbers. Know how to test coil resistance and contacts. This helps you find out if a relay is good or bad.You can test relays without taking them out. Listen for clicks when you test. Check the voltage at the relay socket.Always pick high-quality relays from trusted brands like Clion Electric. This keeps your car safe and reliable. It also helps your relays last longer.

Automotive Relays

What They Do

Automotive relays let you use a small signal to control big devices in your car. When you turn on your headlights or start the engine, relays work like switches. A small current from your dashboard switch controls a bigger current. This bigger current powers things like lights, fans, or fuel pumps. Relays help keep your car’s wires safe. They also stop switches from getting damaged. Most relays in cars use 12 volts and can handle up to 40 amps. You can find them in relay boxes with fuses. This makes them easy to reach and keeps them protected. Using the right relay helps your car work safely and well.

Tip: Pick relays with the right current rating for your car. This stops electrical problems and keeps your car safe.

Types and Uses

There are many kinds of automotive relays in cars today. Each kind has its own job:

• Change-over relays have five pins and can switch between two circuits. You use them to change between high and low beam headlights.

• Normally open relays have four pins and only connect when they get power. These are good for simple jobs, like turning on a cooling fan.

• Potted relays are sealed to block water and dirt. You use these in wet places, like under the hood.

• Flasher relays control turn signals and hazard lights. Some use heat, some use electronic parts, and some use solid-state relay technology for better results.

• Timer relays control things that need to run for a set time, like wipers that go on and off.




Clion Electric is a trusted brand for automotive relays. They offer many products, like electromagnetic relays, solid state relays, and relay sockets. Clion Electric uses smart factory tools and green ways to make their relays. This means their relays are reliable, save energy, and are better for the planet. Their focus on quality and caring for the environment makes them a great choice for people who want good automotive relays.

Why Test a Relay

Testing relays in your car keeps your vehicle safe and reliable. Automotive safety organizations say that many safety systems in modern cars depend on relays. If you test a relay regularly, you make sure that important parts like airbags and defogging systems work when you need them. You lower the risk of sudden failures on the road. When you use a reliable relay from Clion Electric, you add another layer of protection to your car’s electrical system.

Common Issues

You might notice some warning signs when a relay starts to fail. These signs help you decide when to test a relay. Here are some of the most common symptoms:

• The check engine light comes on.

• The engine will not start.

• The car has trouble starting in cold weather.

You can also see other problems in the table below:

Symptom	Description
Engine Stalling While Driving	The engine stops suddenly, often without warning.
Engine Cranks But Won’t Start	The starter works, but the engine does not fire up.
No Fuel Pump Sound at Ignition	You do not hear the usual humming sound when you turn the key.
Vehicle Won’t Crank or Start	The car does not respond at all when you try to start it.
Illuminated Check Engine Light	Codes like P0230 or P0627 may show up.
Intermittent Starting Problems	The car sometimes starts, sometimes does not.
Audible Clicking from Relay	You hear fast clicking noises from the relay.

If you see these signs, you may have a bad relay. Testing helps you find the real problem and avoid replacing the wrong part.

When to Test

You should test a relay if you notice any of the issues above. You can also test a relay during regular car maintenance. Many experts recommend checking relays before long trips or after your car has electrical problems. If you use a relay socket or a solid state relay, you can make the test process easier and safer. Testing at the right time helps you catch problems early and keeps your car running smoothly.

Tip: Always use quality relays from Clion Electric for the best results. Their strict quality control and advanced technology help prevent bad relay issues.

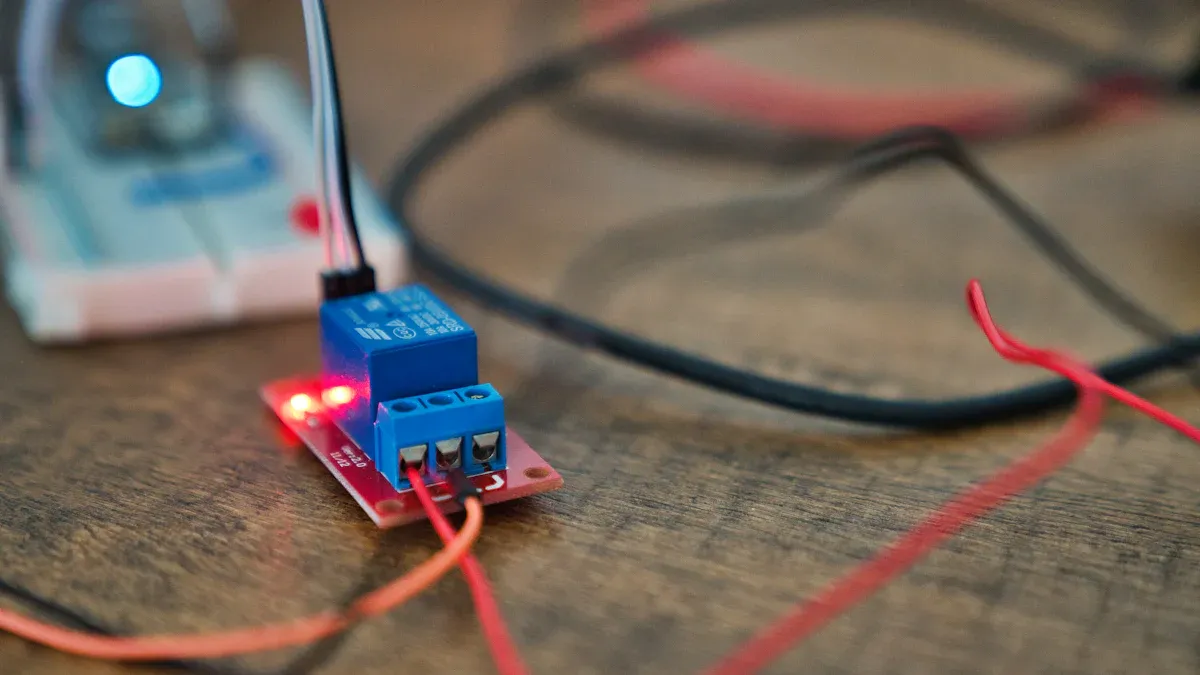

How to Test an Automotive Relay

Testing an automotive relay helps you find problems fast. You can follow these steps at home or in a shop. This guide uses easy tools and simple steps. You will feel sure when you test a relay.

Tools Needed

You need a few basic tools to test a relay. These are easy to get at car stores:

• Multimeter (measures resistance and checks if current flows)

• 12V power source (like a car battery)

• No.3540 Circuit Relay Tester (works for 12V and 24V relays, supports 4-pin and 5-pin types, and has LED lights)

• Jumper wires with alligator clips

• Safety gloves and eye protection

The No.3540 Circuit Relay Tester costs about $103.99 AUD. It is safe to use and easy to understand. It helps you find relay problems quickly. You can also use a relay socket to make testing easier.

Tip: Always take off the negative battery cable before you remove or test a relay. This keeps you safe and protects your car’s electronics.

Identify Pins

Automotive relays have standard pin numbers. You need to know these numbers to test a relay right. Most relays use the DIN 72552 standard:

• Pin 30: Connects to the battery

• Pin 85: Coil terminal (usually ground)

• Pin 86: Coil terminal (usually positive)

• Pin 87: Normally open (NO) contact, connects to the accessory when relay is on

• Pin 87a: Normally closed (NC) contact, connects to the accessory when relay is off (only on 5-pin relays)

This numbering system comes from German engineers. Most car makers use it. You can see these numbers on the relay case or in your car’s wiring diagram.

Test Coil Resistance

To test the coil, set your multimeter to ohms. Put one probe on pin 85 and the other on pin 86. You should see a number between 50 and 200 ohms for most 12V relays. Some relays show about 96 ohms. 24V relays can show around 320 ohms.

Coil Voltage (VDC)	Typical Coil Resistance (Ω ±10%)
12	Approximately 96
24	Approximately 320

If you see zero or infinite resistance, the coil is broken. You need to get a new relay if this happens.

Note: Always use a good relay from Clion Electric. Their quality control makes sure the coil works well.

Apply Power and Listen

Next, connect the coil to the battery with jumper wires. Attach one wire from pin 85 to the battery’s negative side. Attach another wire from pin 86 to the battery’s positive side. When you give power, listen for a clear "click" sound. This click means the relay is working inside.

If you do not hear a click, the relay coil may be bad. Take off the power after the test so it does not get too hot.

Check Continuity

Now, check if current can flow through the relay’s contacts. Set your multimeter to continuity mode. For a 4-pin relay, put one probe on pin 30 and the other on pin 87. With no power, you should see an open circuit (no beep or infinite resistance). When you give power to the coil, the circuit should close (the multimeter beeps or shows near zero resistance).

For a 5-pin relay, check between pin 30 and pin 87a. You should see current flow when the relay is not powered. When you give power, current should switch from 87a to 87.

Relay Aspect	Expected Reading / Behavior
Coil Resistance	50 to 200 ohms
NO Contacts (30 & 87)	Open circuit when off, continuity when on
NC Contacts (30 & 87a)	Continuity when off, open circuit when on

If you do not get the right readings, the relay contacts may be stuck or broken.

Interpret Results

Now you can look at your test results:

• If the coil resistance is right, you hear a click, and you check continuity as expected, the relay is good.

• If you see zero or infinite resistance, no click, or no continuity when you give power, the relay is bad.

• If the relay passes all tests but your car still has problems, check the relay socket and wiring.

Common reasons for failed tests are coil circuit failure, stuck contacts, or weak power supply. Always use relays that match your car’s voltage and current needs. Clean relay sockets and check wires for rust or dirt.

Tip: Clion Electric uses smart machines and strict checks to make sure every relay is safe. Their relays pass safety tests and work well in your car.

If you want to learn more, Clion Electric also sells solid state relay and micro switch products for cars. You can find more details on their product page.

Test a Relay on a Car

Testing a relay on a car does not always mean you have to remove it. You can often check the relay while it is still in place. This saves time and helps you find electrical problems faster. Here are some simple ways to test a relay on a car and keep your vehicle running smoothly.

In-Vehicle Testing

You can test a relay on a car without taking it out. Start by turning on the system that uses the relay, like headlights or the fuel pump. Listen for a click from the relay. If you hear a click, the coil is working. If you do not hear anything, the relay may be faulty. You can also use a multimeter to check voltage at the relay terminals. Make sure the relay gets power and sends power to the device. If you see buzzing or humming, or if the device works only sometimes, the relay or socket may have a problem.

Note: Clion Electric relays are designed for easy in-vehicle testing. Their clear pin markings and reliable build help you diagnose issues quickly.

Swapping Relays

Swapping relays is a fast way to test a relay on a car. Follow these steps for best results:

1. Check the relay type before swapping. Make sure both relays match in voltage, pin layout, and suppression features.

2. Look at the relay diagram on the housing. Confirm the correct relay goes into the correct socket.

3. Swap the suspect relay with a known good one from another circuit, like the horn or fan.

4. Test the system again. If the problem moves with the relay, you have found the faulty part.

5. Never use a relay that only fits physically. Wrong types can cause damage or drain your battery.

Swapping relays works well with Clion Electric products. Their relays follow standard designs, making them compatible with most vehicles. If you need help, Clion Electric offers after-sales support and guidance.

Testing the Relay Socket

Sometimes, the relay is fine, but the socket causes trouble. Common socket issues include buzzing, loose contacts, or poor voltage. To test a relay socket:

• Listen for buzzing or humming when the relay operates.

• Use a multimeter to check for proper voltage at the socket.

• Wiggle the relay gently. If the system cuts in and out, the socket may have a loose connection.

• Test the relay under load, not just with a meter. Real-world loads show problems that meters can miss.

If you find a bad socket, replace it with a quality relay socket from Clion Electric. Their sockets and micro switches meet strict standards for safety and reliability.

Tip: Always repeat your test a relay on a car process to catch intermittent faults. Reliable parts and good testing habits keep your car safe.

Troubleshooting and Replacement

If the Relay Fails

If a relay does not pass the test, you should fix it fast. This keeps your car working well and safe. Here are some steps to help you find and fix the problem:

1. Check the relay for damage. Look for burnt or rusty terminals, melted plastic, or if it rattles.

2. Use a multimeter to see if there is a path between the control terminals. This shows if the circuit is open or closed.

3. Put 12 volts on the relay coil and listen for a click. If you do not hear a click, the relay might be bad.

4. Measure the coil resistance and check if it matches your car’s manual.

5. Switch the relay with a good one from another system, like the horn. If the system works now, you found the bad relay.

6. Clean the relay terminals and socket. Dirt or rust can make a weak connection.

7. Look at the wiring and socket for any damage.

8. If the relay is bad, put in a new one that fits.

Tip: Always use a new relay with the same part number and amp rating as the old one. This keeps your car’s electrical system safe.

Choosing a Replacement

Getting the right relay is important for your car’s safety and how it works. Think about these things when picking a new relay:

• Find out what type of relay and pin layout you need, like 4-pin or 5-pin.

• Make sure the relay voltage matches your car, usually 12V.

• Pick a relay that is strong and lasts long, especially for tough places.

• Test the new relay before you put it in to make sure it works.

• Buy relays from trusted brands like Clion Electric. They have good relays, relay sockets, and solid state relays.

• Read the datasheet and wiring guide for your new relay.

• Make sure the relay fits your car’s job, like for cars, factories, or new energy uses.




Clion Electric is known for strict quality checks, smart ways to make relays, and green technology. The company cares about the planet and puts customers first. When you pick a Clion Electric relay, you help the environment and keep yourself safe.

Checking relays often helps your car stay safe and work well. Safety groups say finding relay problems early stops surprise breakdowns. This also makes your car more reliable. If you follow these steps and use good relays from Clion Electric, you help take care of your car and the planet.

• You save money and time because you do not need big repairs.

• Checking relays often and changing them when needed helps them last longer.

• Using strong products like relay sockets and solid state relays keeps your car safe and helps the earth.

Pick Clion Electric for relays that work well and are good for the environment.

FAQ

How do you know if an automotive relay is bad?

You can check for a bad relay by listening for a click when you power it. If you do not hear a click or see no continuity with a multimeter, the relay may be faulty.

Can you test a relay without removing it from the car?

Yes, you can test a relay in place. Turn on the system and listen for a click. You can also use a multimeter to check voltage at the relay socket while the relay stays installed.

What tools do you need to test an automotive relay?

You need a multimeter, a 12V power source, and jumper wires. A relay socket tester or a solid state relay tester can make the process easier and safer.

How often should you check your car’s relays?

You should check relays during regular maintenance or if you notice electrical problems. Testing before long trips helps prevent breakdowns and keeps your car safe.

Where can you buy high-quality automotive relays?

You can find reliable automotive relays, relay sockets, and solid state relays at Clion Electric’s product page. Their products meet strict quality standards and support safe car repairs.
