When designing electrical systems, one of the key decisions is selecting the right type of relay for your specific application. Relays are essential components in controlling electrical circuits, allowing low-power signals to switch high-power devices on and off. However, not all relays are the same, and two of the most common types used in modern electrical systems are electromagnetic relays (EMRs) and solid-state relays (SSRs).
Each type of relay has distinct advantages and limitations, making them suitable for different applications. In this article, we’ll compare electromagnetic relays and solid-state relays, exploring their differences, benefits, and ideal use cases, so you can make an informed decision about which relay is best for your needs.

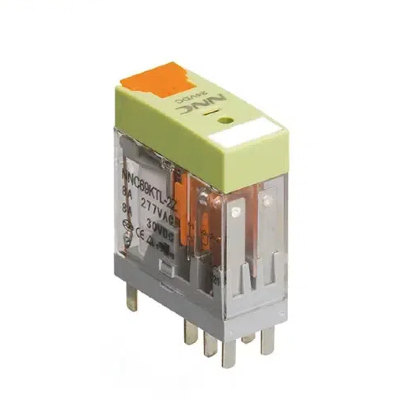

An electromagnetic relay is a mechanical switch that uses an electromagnet to control the opening and closing of electrical contacts. When an electric current passes through a coil (the electromagnet), it generates a magnetic field that attracts an armature, which in turn opens or closes the contacts to complete or break the circuit.
Electromagnetic relays are widely used in various applications, such as motor control, circuit protection, and industrial automation. They can handle high currents and voltages and are known for their durability, simple design, and reliability.
A solid-state relay (SSR) is an electronic switching device that performs the same function as an electromagnetic relay but without moving parts. Instead of using an electromagnet to control the switching action, SSRs use semiconductor components such as thyristors, triacs, or MOSFETs to open or close the circuit.
Solid-state relays are often chosen for their ability to handle high switching speeds, longer lifespans, and the absence of mechanical wear and tear. They are typically used in situations where fast, reliable switching is required.
Let’s compare these two types of relays across several important factors, including their construction, operation, efficiency, and reliability.
Mechanical Components: EMRs consist of a coil, armature, spring, and contacts. The mechanical movement of the armature is what allows the relay to open or close the circuit.
Electromagnetic Actuation: When current flows through the coil, it generates a magnetic field that attracts the armature and moves it to either make or break the connection.
Moving Parts: Since EMRs rely on mechanical movement, they are subject to physical wear and tear over time.
Electronic Components: SSRs are made of semiconductor devices such as thyristors, triacs, and MOSFETs. These components act as switches without any moving parts.
Electronic Switching: The relay operates by using the electrical properties of semiconductors to switch the circuit, which results in faster switching and no physical movement.
Electromagnetic Relays: The switching speed of electromagnetic relays is relatively slower compared to solid-state relays. This is due to the mechanical movement of the armature, which can cause delays in the opening and closing of the contacts.
Solid-State Relays: Solid-state relays have a much faster switching speed. Since there are no moving parts involved, SSRs can switch on and off in microseconds, making them ideal for applications where high-speed switching is required.
Electromagnetic Relays: While EMRs are durable, their mechanical parts, such as the armature and contacts, are prone to wear over time. This mechanical wear can eventually lead to failure. The lifespan of an EMR is typically measured in cycles, and excessive switching can wear out the contacts.
Solid-State Relays: SSRs have no moving parts, so they tend to have a much longer lifespan compared to EMRs. The absence of mechanical wear means SSRs can handle millions of switching cycles without significant degradation. This makes them more suitable for high-frequency switching applications and environments where long-term reliability is crucial.
Electromagnetic Relays: EMRs are typically bulkier due to the mechanical components involved. The size of the relay may be a limiting factor in applications where space is constrained.
Solid-State Relays: SSRs are generally smaller and more compact than their electromagnetic counterparts, as they don’t require the large mechanical parts needed for the armature and contacts. Their small size makes them ideal for use in tight spaces and applications where compact design is important.
Electromagnetic Relays: EMRs require a constant flow of current through the coil to keep the relay activated. Although this power requirement is typically low, it can still add to the overall power consumption of the system.
Solid-State Relays: SSRs have the advantage of lower power consumption in the sense that they do not require continuous power to maintain their state. Once activated, they can remain in their switching state without needing continuous power, making them more energy-efficient in certain applications.
Electromagnetic Relays: EMRs are known to generate mechanical noise when switching. This noise can be a drawback in noise-sensitive applications, such as audio equipment or medical devices. Additionally, the electrical contacts in EMRs can cause arcing, which can create electrical noise and interfere with the operation of nearby equipment.
Solid-State Relays: SSRs operate silently, without any mechanical movement or contact arcing. This makes them ideal for environments where noise must be minimized, such as in residential, audio, or medical applications. Furthermore, SSRs are less likely to generate electrical interference, contributing to cleaner signal transmission.
Electromagnetic Relays: EMRs are ideal for general-purpose applications, especially in environments where reliability is key but the switching speed is not critical. They are commonly used in motor control, circuit protection, lighting systems, and industrial automation.
Solid-State Relays: SSRs are typically used in applications requiring high-speed switching, high-frequency operation, or silent operation. They are found in temperature control systems, process control, heating applications, and situations where frequent switching is needed without the wear and tear associated with mechanical relays.
The decision to choose between an electromagnetic relay and a solid-state relay largely depends on your application’s specific needs. Here's a simple guide to help you choose the right relay:
You need a cost-effective, reliable relay for standard industrial applications.
The switching frequency is not very high.
Your system can tolerate mechanical wear over time.
The relay is used in applications where noise generation is not a critical concern.
You need fast switching times and high-frequency operation.
Your application requires silent operation and minimal noise.
You need a relay that can withstand millions of switching cycles without wear.
Energy efficiency is a priority, and you want a relay that consumes less power.
Both electromagnetic relays and solid-state relays have their own unique advantages and are well-suited for different applications. Electromagnetic relays are reliable, cost-effective, and ideal for low-frequency switching, whereas solid-state relays offer faster switching, longer lifespan, and silent operation, making them perfect for high-speed, high-frequency, or noise-sensitive applications.
By carefully considering the specific needs of your system, including switching speed, durability, cost, and power consumption, you can select the relay that best suits your application. Whether you need the mechanical reliability of an electromagnetic relay or the fast, quiet operation of a solid-state relay, understanding their differences will help you make the right decision.
